Akuvox A03 Bluetooth + RFID Access Control Terminal

Akuvox A03 Bluetooth + RFID Access Control Terminal

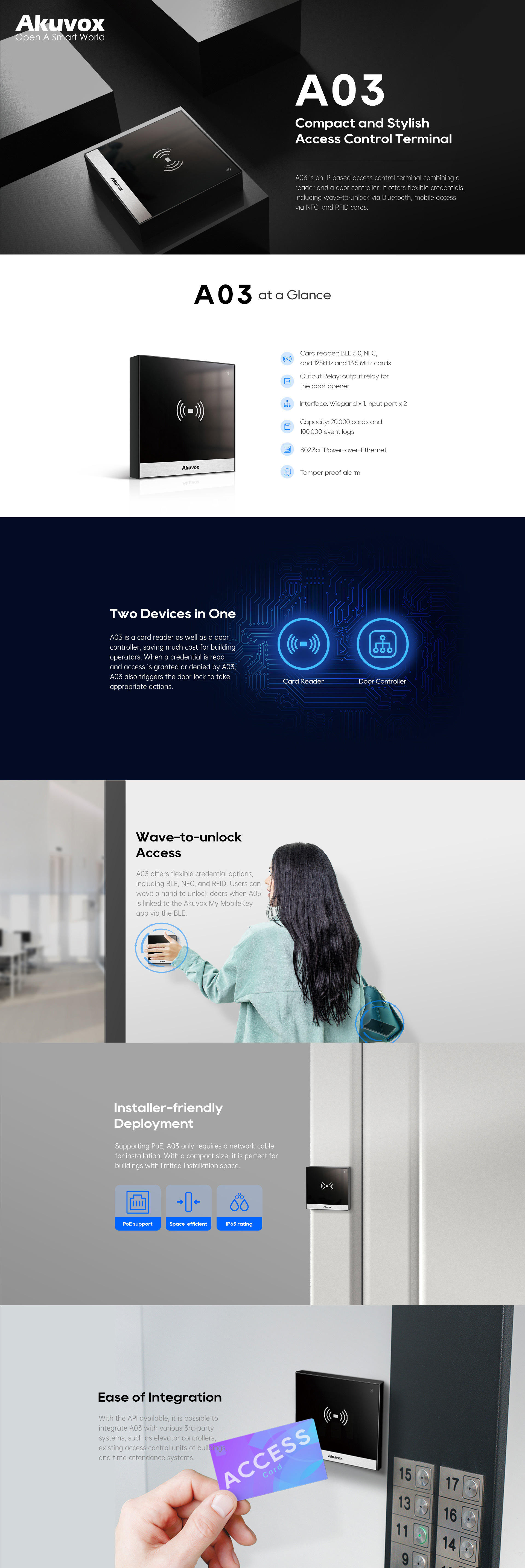

A03S is an IP-based access control terminal combining a reader and a door controller. It offers flexible credentials, including wave-to-unlock via Bluetooth, mobile access via NFC, and RFID cards.

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description

A03 Specification
Akuvox’s A03S is a safe and convenient commercial-grade device for access control. It offers you a BLE feature that enables you to open door via credential on your smartphone. And it can be easily connected to a PoE using an Ethernet cable for data transmission. A03S provides you with greater security and flexibility than those traditional access control systems.
Physical & Power
  • Front panel: Toughened Glass
  • Frame: Aluminum
  • RF reader: 13.56MHz & 125kHz, NFC (only Android)
  • BLE: Support BT5.0
  • Relay out: 1
  • Inputs: 2
  • Wiegand: Support
  • Speaker: 1
  • Tamper Alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • IP Rating: IP65
  • IK Rating: IK07
  • Installation: Flush-mounted or Wall-mounted
  • Dimension (HxWxD): 86x86x33 (mm)
  • Working Humidity: 10~90%，no condensing
  • Working Temperature: -20°C ~ +55°C
  • Storage Temperature: -30°C ~ +70°C
Capacity
  • User Capacity: 20,000
  • Card Capacity: 20,000
  • Event Log: 100,000
Deployment & Maintenance
  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs
Networking
  • Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature
  • Access schedule export/import
  • Access level management
  • Supports switch to reader mode
  • Door access logs query and export
  • Flexible scheduling and attendance management
