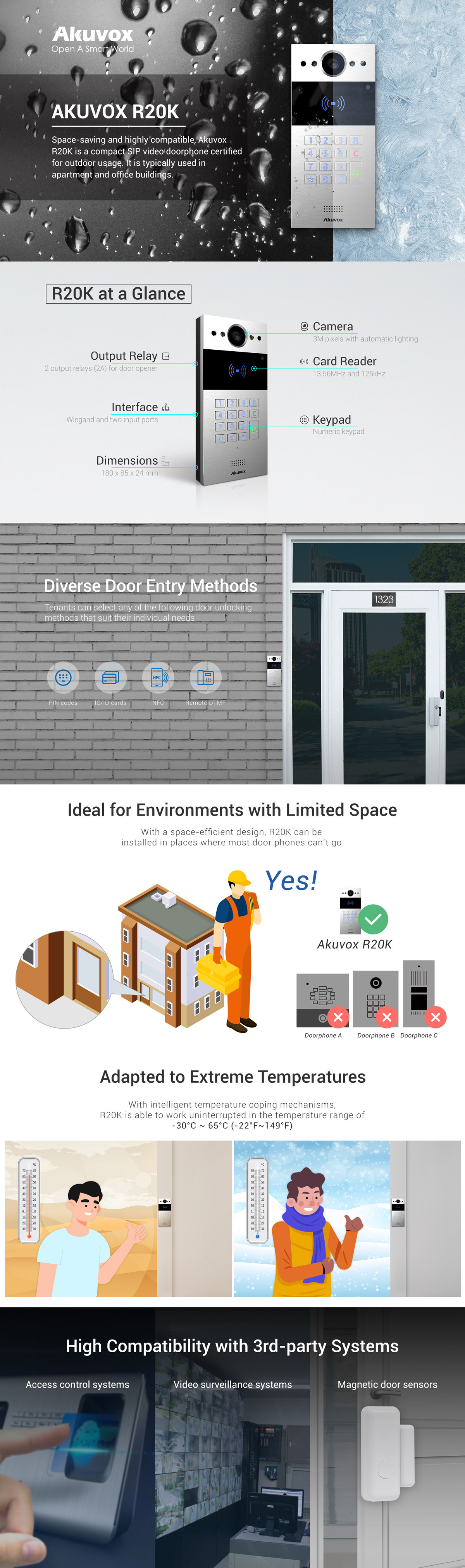

Akuvox R20K Palm-Size Doorphone Certified for Outdoor Usage

Akuvox R20K Palm-Size Doorphone Certified for Outdoor Usage

Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings.

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description


R20K Specification
Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings.
Physical & Power
  • Front panel: Aluminum alloy
  • Camera: 2M pixels, automatic lighting
  • Numeric keypad with extra buttons
  • Light sensor: Support
  • Infrared sensor: Support
  • Wiegand port: Support
  • RS485 port: Support
  • RF card reader: 13. 56MHz & 125kHz
  • Relays out: 2
  • Inputs: 2
  • Microphone: -40dB
  • Speaker: 42Ω / 3W
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power- over - Ethernet
  • 12V DC connector (if not using PoE)
  • Water-proof & Dust- proof: IP65
  • Installation: Flush-mounted or Wall- mounted
  • Flush-mounted DIM: 226x108x52mm
  • Wall- mounted DIM: 185x85x29mm
  • Working Humidity: 10 ~ 90%
  • Working Temperature: -30°C ~ +65°C
  • Storage Temperature: - 40°C~ + 70°C
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
Video
  • Sensor: 1/3”, CMOS
  • Pixels: CIF, QCIF, VGA, 4CIF, 720p
  • Video codec: H.265&H.264
  • Video resolution: up to 1080p
  • Max. image transfer rate: 720p -30fps
  • Viewing angle: 110°(H) / 58°(V)
  • High intensity IR LEDs for picture lighting during dark hours with internal light sensor
  • Compatible to 3rd- Party video components, e.g. NVRs
Door Entry Feature
  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • Auto- night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX
Networking & Protocol
  • Protocols support: IPv4, HTTP,HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
Deployment & Maintenance
  • Auto- Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Entry log export
  • Access table export / import
  • Firmware upgrade
  • System logs (include door access logs)
Application Scenario
  • Office doorphone with on-site or hosted IP-PBX
  • Remote site entry over Internet
  • Apartment/flat intercom with door access control
