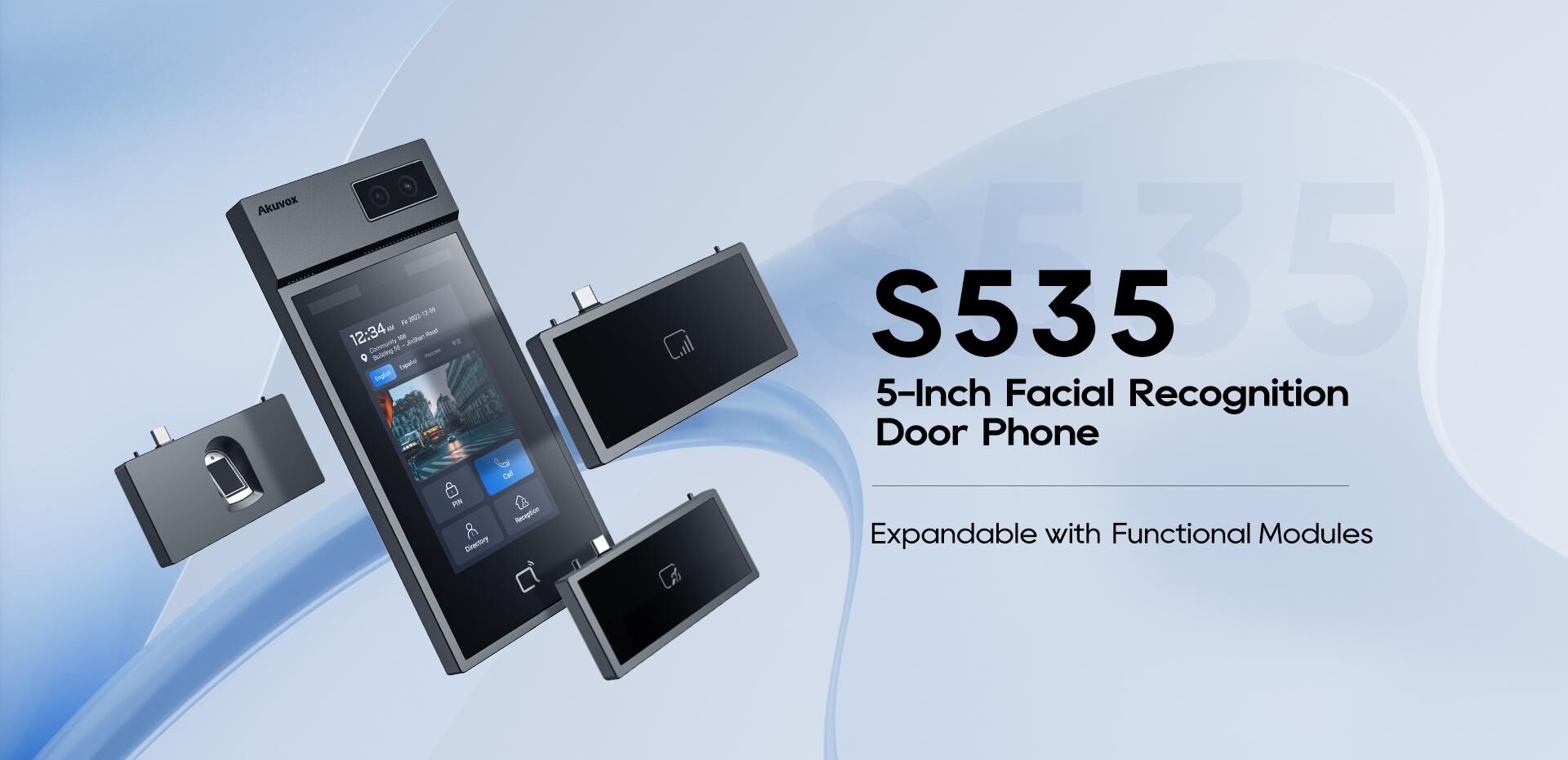

Akuvox S535 Facial Recognition Door Phone Expandable with Functional Modules

Akuvox’s S535 adopts a modular architecture for versatile application scenarios. With innovative hardware design and scenario-based expandability, it fulfills diverse access control needs for both residential and commercial projects, while flexibly adapting to evolving user and environmental demands

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Description

Shipping & Payment

Description

S535 Facial Recognition Door Phone Expandable with Functional Modules

Akuvox’s S535 features a modular architecture for flexible adaptation to various application scenarios. With innovative hardware design and scenario-based expandability, it meets diversified access control requirements for both residential and commercial applications while adapting to evolving user and environmental needs.

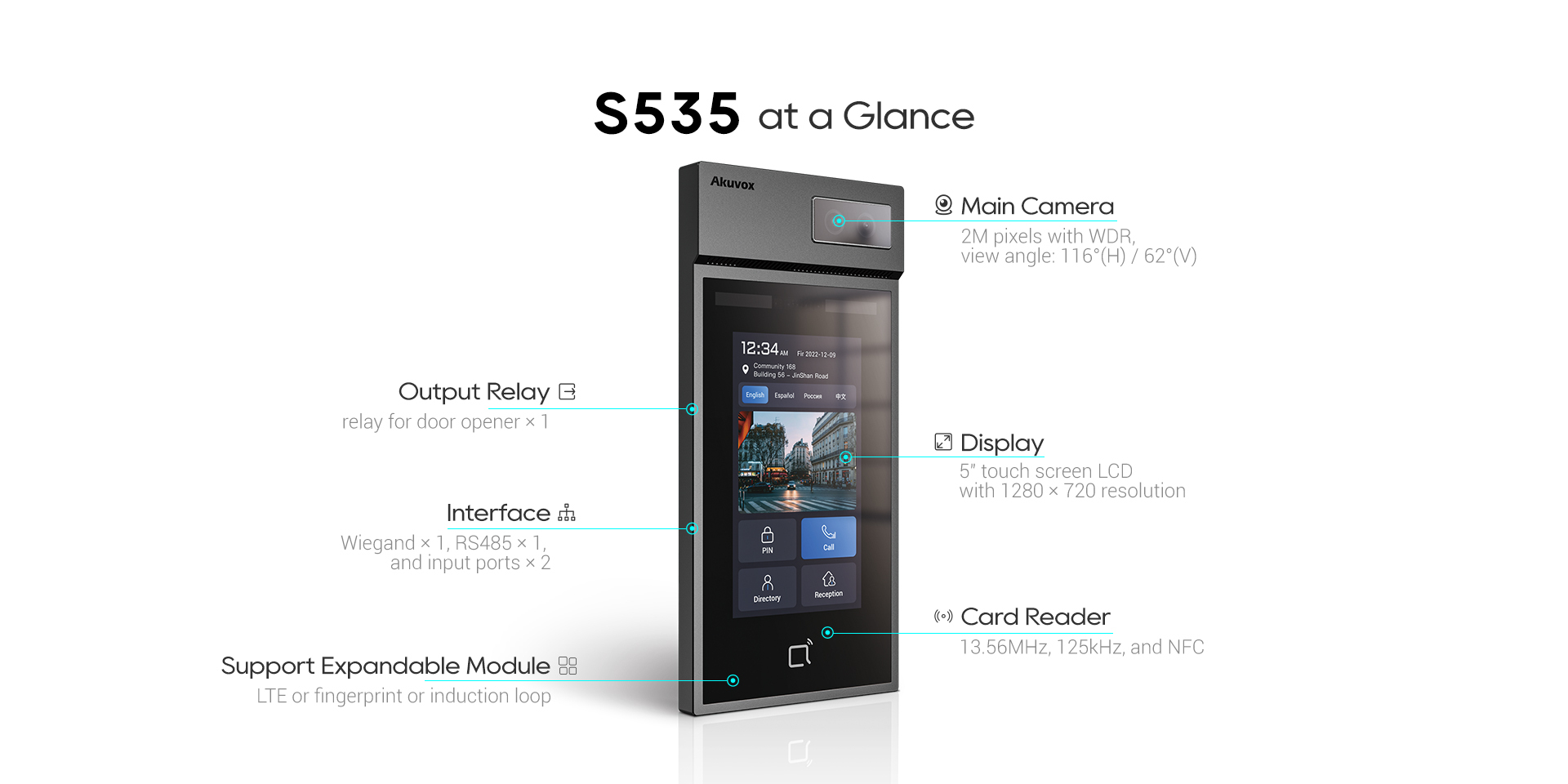

At a Glance

Aluminum panel with 5inch touchscreen;
Linux operation system;
Wide-angle camera: 116º (H), 62º (V);
Two-way audio communication over IP networks with Echo Cancel feature;

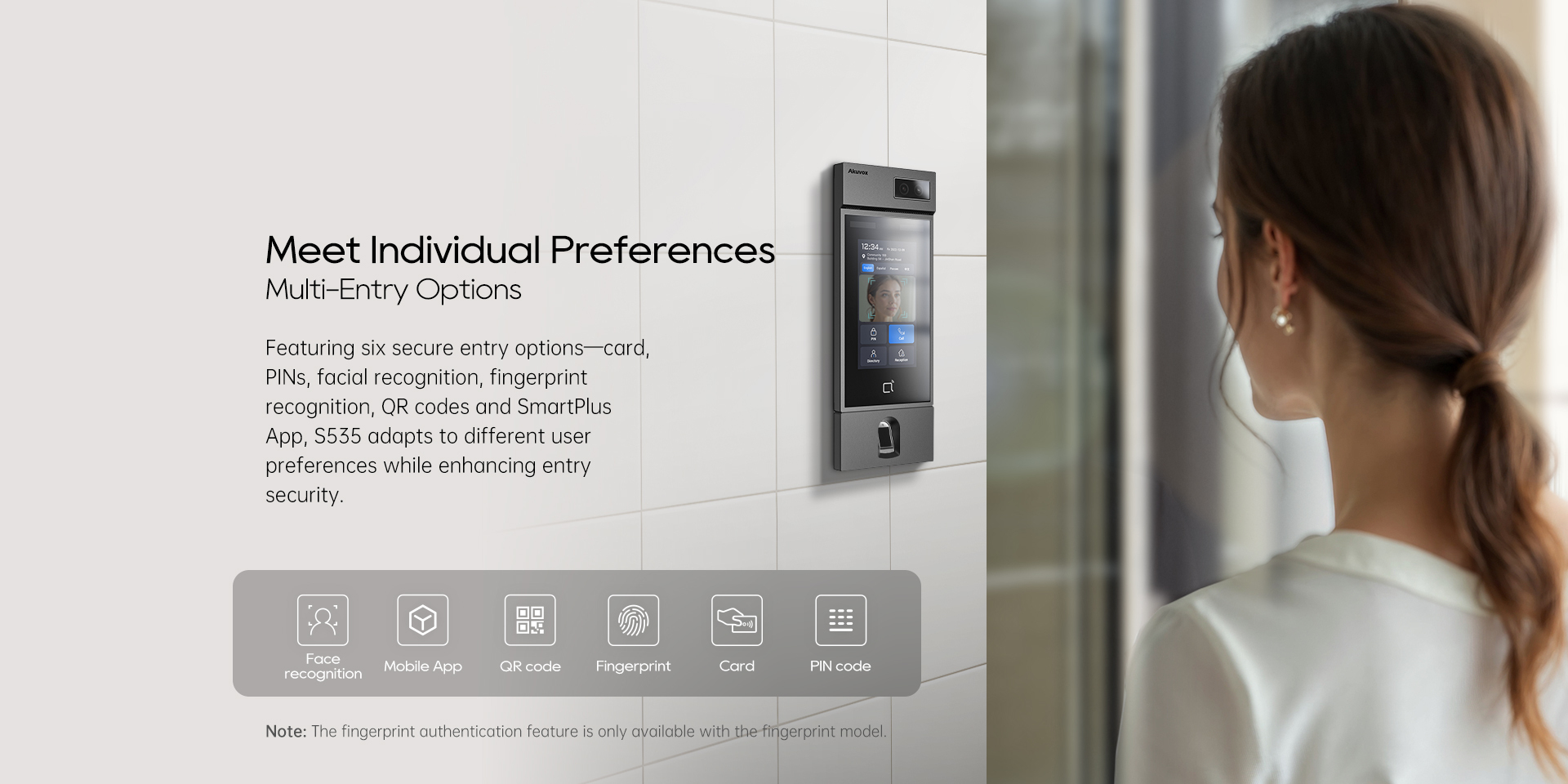

Multi-way access feature including: Face, Card, PIN, BLE & QR code;

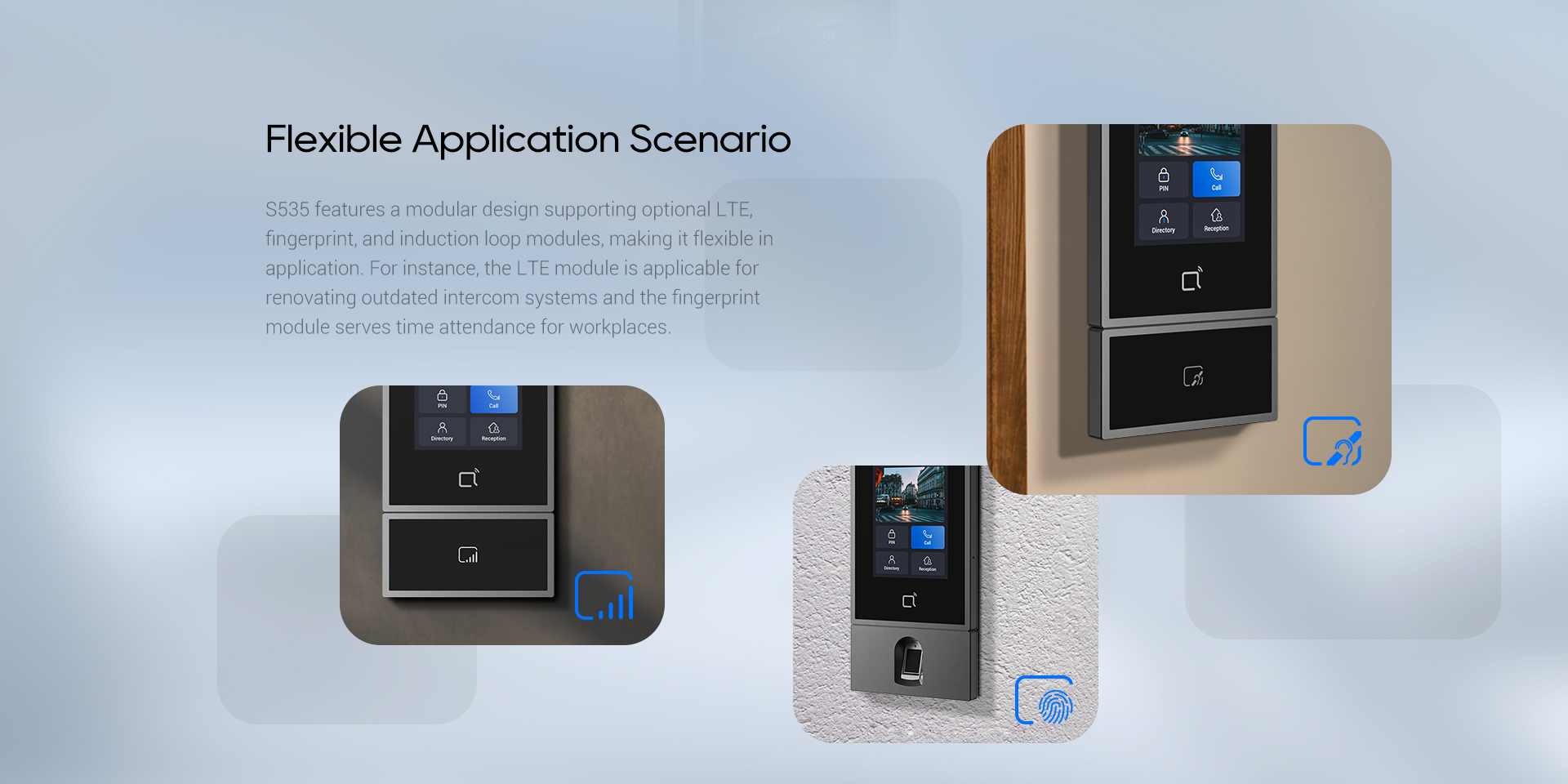

Support expandable module: LTE or Fingerprint or Induction Loop;
Flush-mounted & surface-mounted;
Complies with SIP & ONVIF;

Physical & Power

Front Panel: Aluminum
Display: 5 Inch IPS LCD
Main Camera: 2M pixels, auto-lighting
Light Sensor: Support
Motion Sensor: Support
Wiegand Port: Support
RS485 Port: Support
RF Card Reader: 13.56MHz, 125kHz & NFC
Relays Out: 1
Inputs: 2
Microphone: 1
Speaker: 1
Reset: 1
BLE: Support
Tamper Alarm: Support
Expandable Module: Support
Ethernet Port: 1xRJ45, 10/100Mbps adaptive
802.3at Power-over-Ethernet
Power supply: DC 12V / 4A（max.）

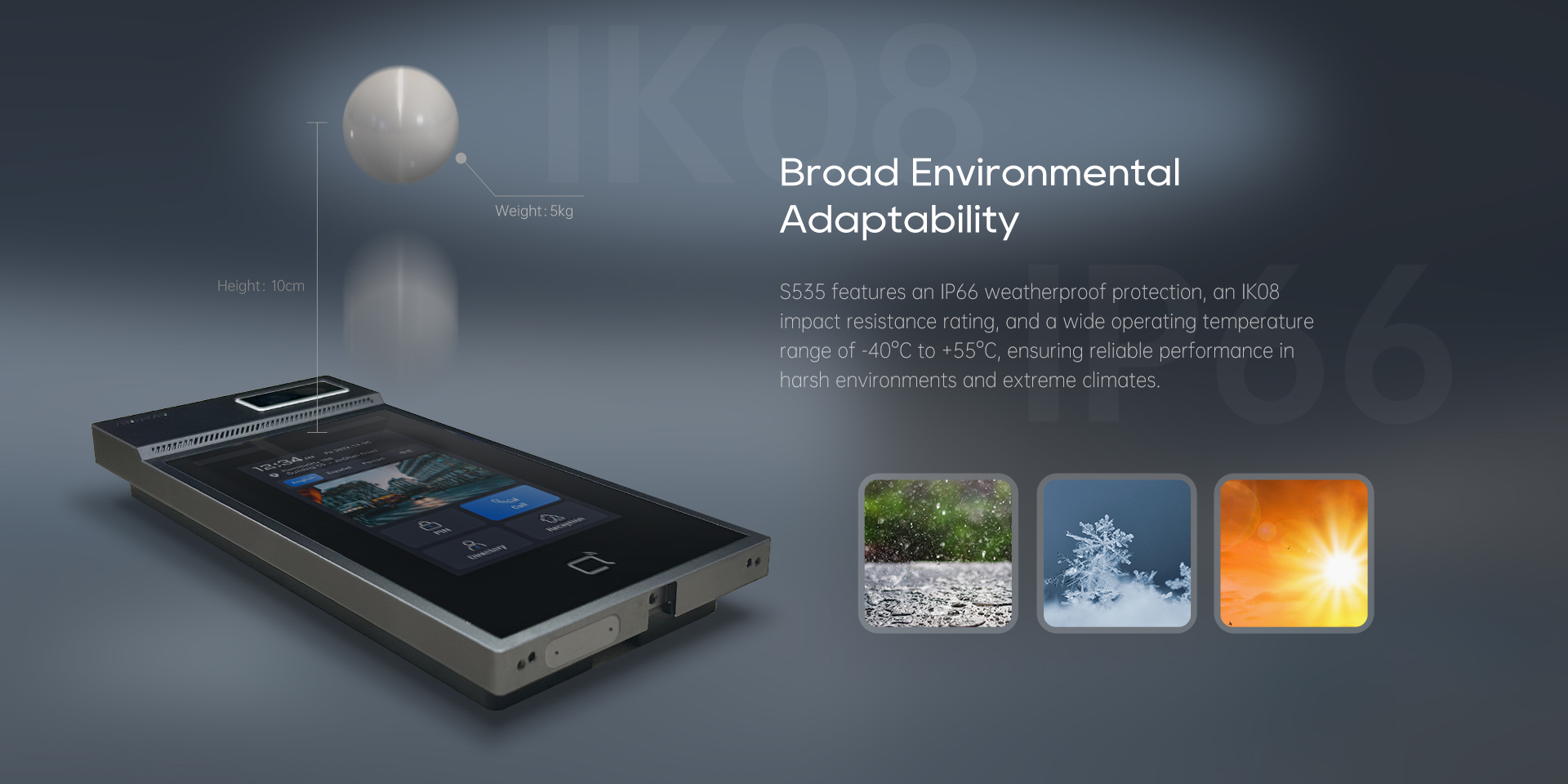

IP Rating: IP66
IK Rating: IK08

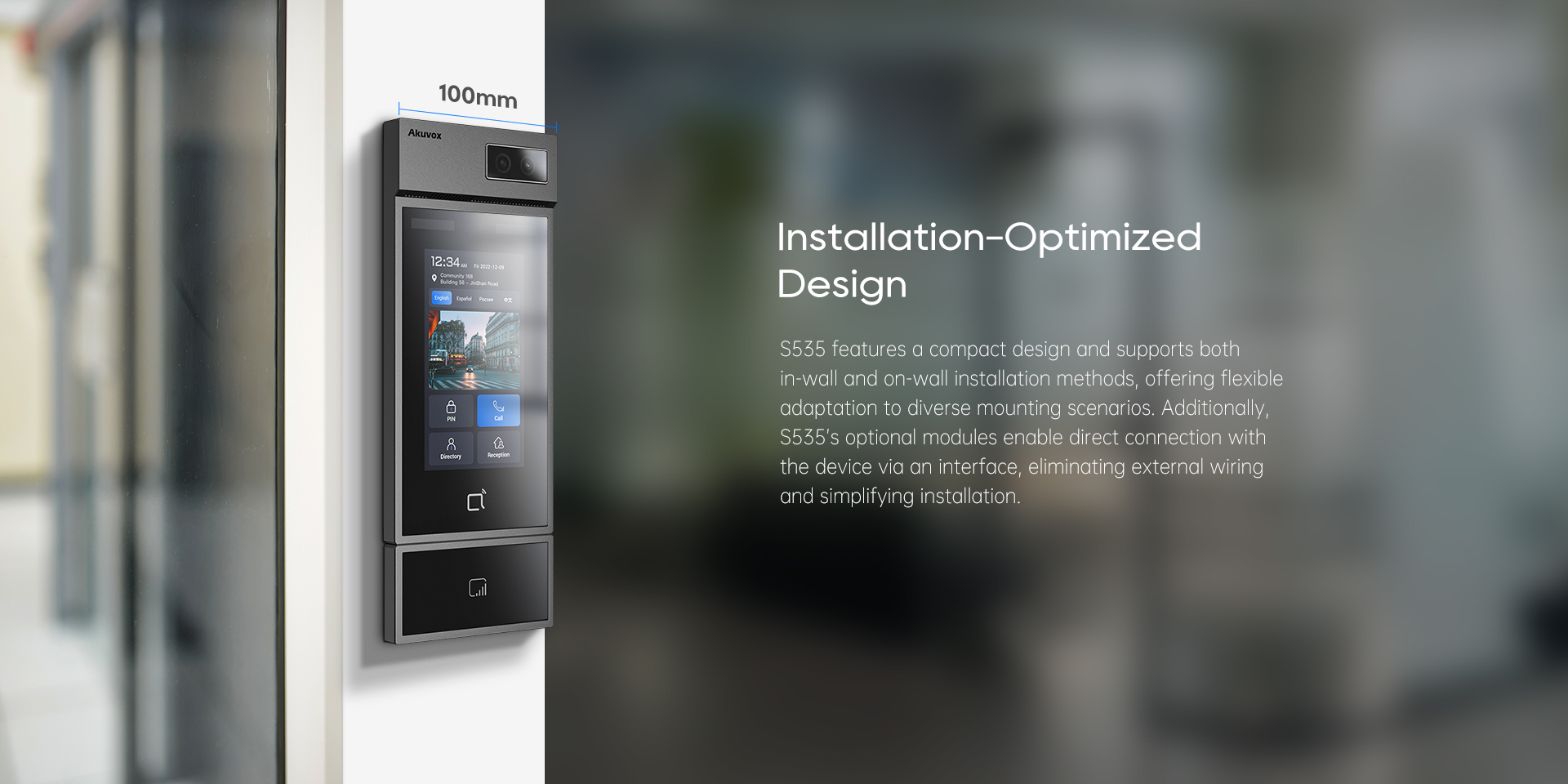

Installation: Flush-mounted & Wall-mounted
Size:210x100x27mm
Working Humidity: 10~90%
Working Temperature: -40°C ~ +55°C
Storage Temperature: -40°C ~ +70°C

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ
Wideband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator

Video

Sensor: 1/2.9”, CMOS for main camera
Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264
Video technology: HDR
Video resolution: up to 1920x1080
Max. image transfer rate: 1080p – 30fps
Viewing angle: 110°(H) / 62°(V)
Compatible to 3rd-Party-Video components, e.g. NVRs

Networking & Protocol

Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

Relays controlled individually by DTMF tones
Multi-way Unlock: Face, Card, PIN, BLE & QR code
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX

Deployment & Maintenance

Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)

Application Scenario

Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
