Akuvox X910 Single-Button Package Detection Door Phone

Akuvox X910 Single-Button Package Detection Door Phone

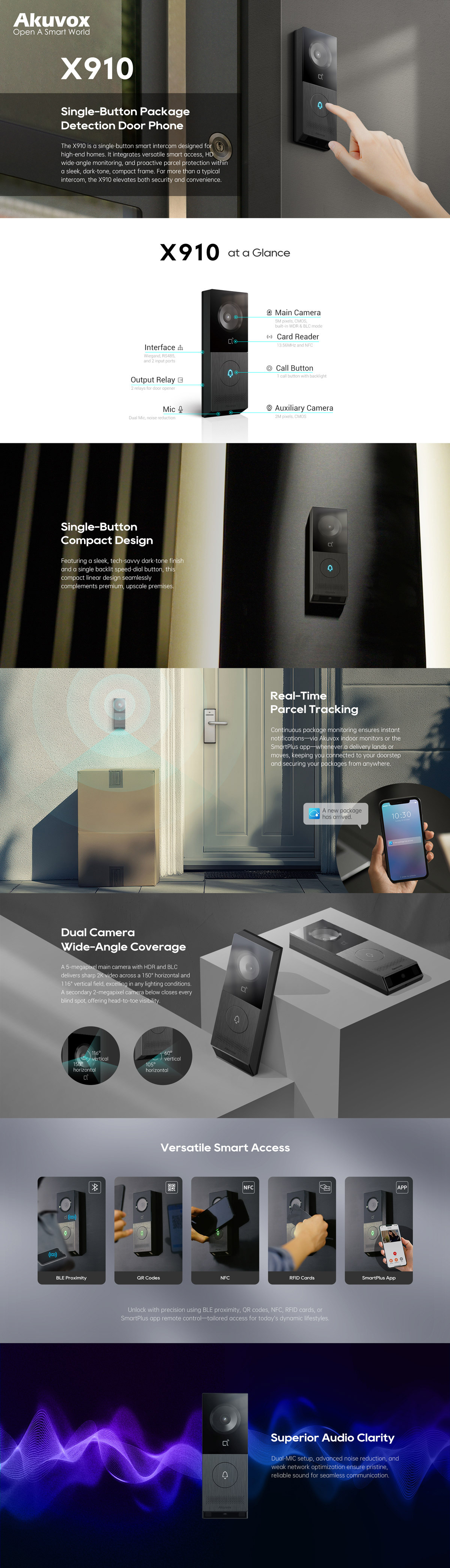

The X910 is a single-button smart intercom designed for high-end homes. It integrates versatile smart access, HD wide-angle monitoring, and proactive parcel protection within a sleek, dark-tone, compact frame. Far more than a typical intercom, the X910 elevates both security and convenience.

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Description
Shipping & Payment
Description


X910 Specification
The X910 is a single-button smart intercom designed for high-end homes. It integrates versatile smart access, HD wide-angle monitoring, and proactive parcel protection within a sleek, dark-tone, compact frame. Far more than a typical intercom, the X910 elevates both security and convenience.
Physical & Power
  • Front panel: Aluminum
  • Main Camera: 5M pixels, automatic lighting
  • Auxiliary Camera: 2M pixels, automatic lighting
  • Button: 1 call button
  • Light sensor: Support
  • Motion sensor: Support
  • Wiegand port: Support
  • RS485 port: Support
  • RF card reader: 13.56MHz, NFC
  • Relays out: 2
  • Inputs: 2
  • Microphone: 1
  • Speaker: 1
  • BLE: Support
  • Tamper alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3at Power-over-Ethernet
  • IP Rating: IP66
  • IK Rating: IK08
  • Size: 192x70x27 mm
  • Installation: Wall-mounted
  • Working Humidity: 10~90%
  • Working Temperature: -40°C ~ +55°C
  • Storage Temperature: -40°C ~ +70°C
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ
  • Wideband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
Video
  • Sensor: 1/2.78”, CMOS
  • Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K
  • Video codec: H.264
  • Video resolution: up to 2592*1944
  • Max. image transfer rate: 2K pixels – 30fps
  • Viewing angle: 150°(H) / 116°(V)
  • High intensity IR LEDs for picture lighting during dark hours with an internal light sensor
  • Compatible to 3rd party video components,
  • e.g. NVRs
Door Entry Feature
  • Relays controlled individually by DTMF tones
  • Camera permanently operational
  • Auto-night mode with LED illumination
  • White balance: auto
  • Minimum illumination: 0.1LUX
Networking & Protocol
  • Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Entry log export
  • Access table export/import
  • Firmware upgrade
  • System logs (include door access logs)
Application Scenario
  • Office door phone with on-site or hosted IP-PBX
  • Remote site entry over the Internet
  • Villa intercom with door access control
